Description

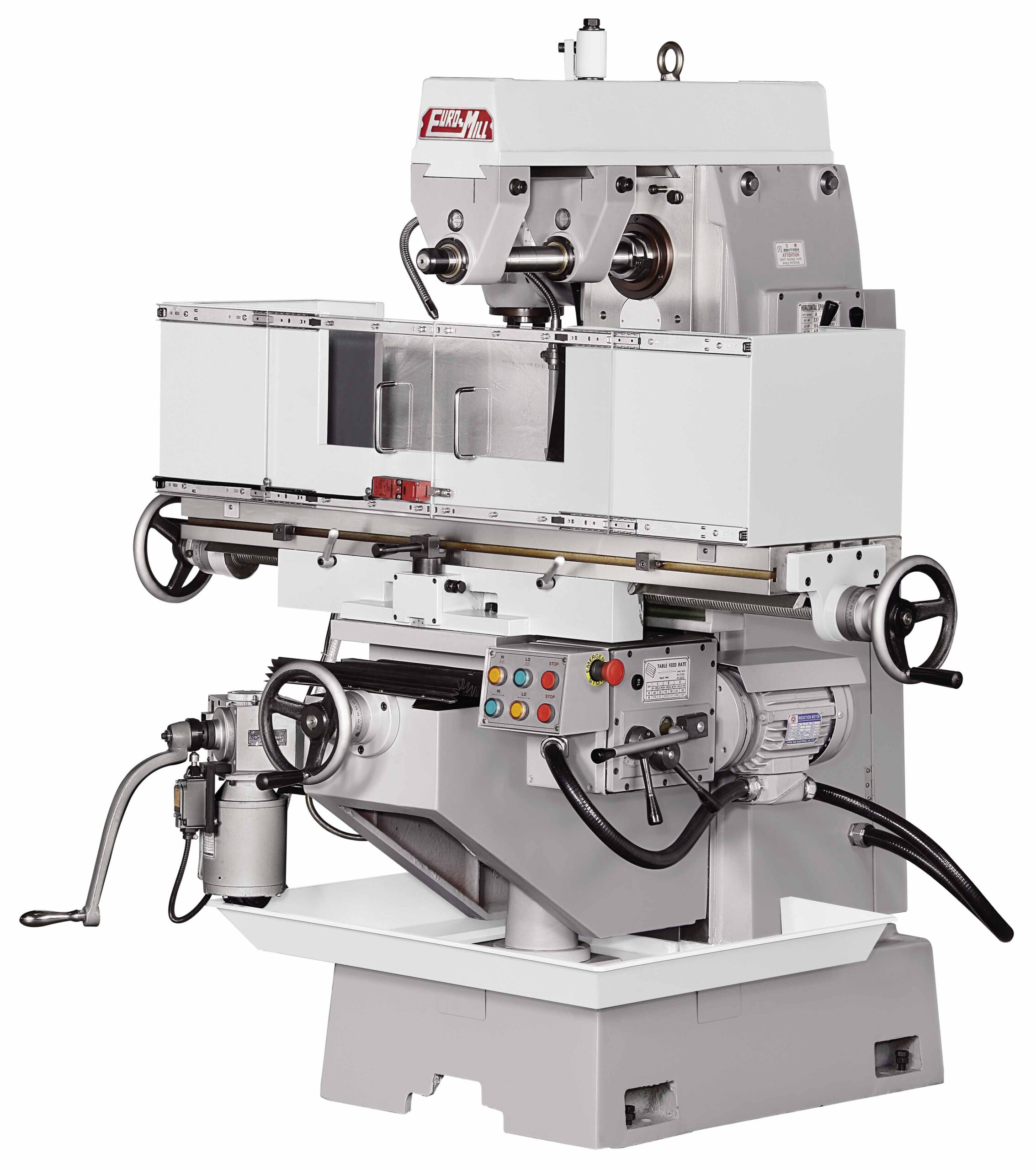

Euro-Source Maximart 2UM
Klik op de foto van de machine voor meer informatie.
|
ITEM/MODEL |
2UM |
|
Table |
|
|
Table size |
240 × 1055 mm (9” × 42”) |
|
Table Load Capacity |
300 kgs |
|
Number of T-Slots |
3 |
|
T-Slots Width |
16 mm |
|
T-Slot Center Distance |
63.5 mm |
|
Table Ways (X Axis) |
Dovetail |
|
Bed Ways (Y Axis) |
Dovetail |
|
Column Ways (Z Axis) |
Dovetail |
|
Travels |
|
|
Longitudinal travel (X Axis) – Manual |
560 mm (22”) |
|
Longitudinal (X Axis) – Auto (opt.) |
560 mm (22”) |
|
Cross travel (Y Axis) – Manual |
300 mm (12”) |
|
Vertical travel (Z Axis) – Manual |
420 mm (16”) |
|
Table longitudinal feed motor |
1 HP |
|
Range of longitudinal feed speed |
60HZ (21~246) mm/min (6 steps) 50HZ (17~203) mm/min (6 steps) |
|
Range of longitudinal rapid speed |
60HZ (2056) / 50HZ (1173) mm/min |
|
Table vertical rapid motor |
– |
|
Range of vertical rapid speed |
– |
|
Table swivel (R&L) |
45° |
|
Vertical Turret Spindle |
|
|
Spindle motor |
– |
|
Amp. Draw 380V |
60HZ: 4.92, 50HZ: 5.09 |
|
Amp. Draw 230V |
60HZ: 8.13, 50HZ: 8.41 |
|
Amp. Draw 460V |
60HZ: 4.06, 50HZ: 4.2 |
|
Spindle speed (rpm) 50HZ |
– |
|
Spindle speed (rpm) 60HZ |
– |
|
Low range (rpm) 50HZ |
– |
|
Low range (rpm) 60HZ |
– |
|
High range (rpm) 50HZ |
– |
|
High range (rpm) 60HZ |
– |
|
Spindle Taper |
NT40 |
|
Head swivel (R&L) |
90° |
|
Overarm travel |
– |
|
Distance of spindle end to table top |
– |
|
Quill Feed in/revolution |
– |
|
Quill Feed mm/revolution |
– |
|
Quill travel |
– |
|
Quill Dia. |
– |
|
Horizontal Spindle |
|
|
Spindle motor |
3 HP |
|
Amp. Draw 380V |
60HZ: 4.92 , 50HZ: 5.09 |
|
Amp. Draw 230V |
60HZ: 8.13 , 50HZ: 8.41 |
|
Amp. Draw 460V |
60HZ: 4.06 , 50HZ: 4.2 |
|
Spindle speed (rpm) 50HZ |
90 – 1225 , 6 steps |
|
Spindle speed (rpm) 60HZ |
108 – 1470 , 6 steps |
|
Low range (rpm) 50HZ |
90-358 |
|
Low range (rpm) 60HZ |
108-430 |
|
High range (rpm) 50HZ |
300-1225 |
|
High range (rpm) 60HZ |
360-1470 |
|
Spindle Taper |
NT40 |
|
Spindle center to table |
0-320 mm |
|
Spindle center to overarm bottom |
120 mm |
|
Construction & Weight |
|
|
Over Height |
1760 mm |
|
Over Depth |
1200 mm |
|
Over Width |
1650 mm (one side) |
|
Halogen Work Light |
24V / 70W |
|
Coolant pump |
1/8 HP |
|
Packing size |
1397 × 1220 × 2032 mm |
|
Machine New Weight lbs/kgs |
2420 / 1100 |
|
Machine Gross Weight lbs/kgs |
2750 / 1250 |
|
● Above specifications are subject to change without prior notice. |
|
