Description

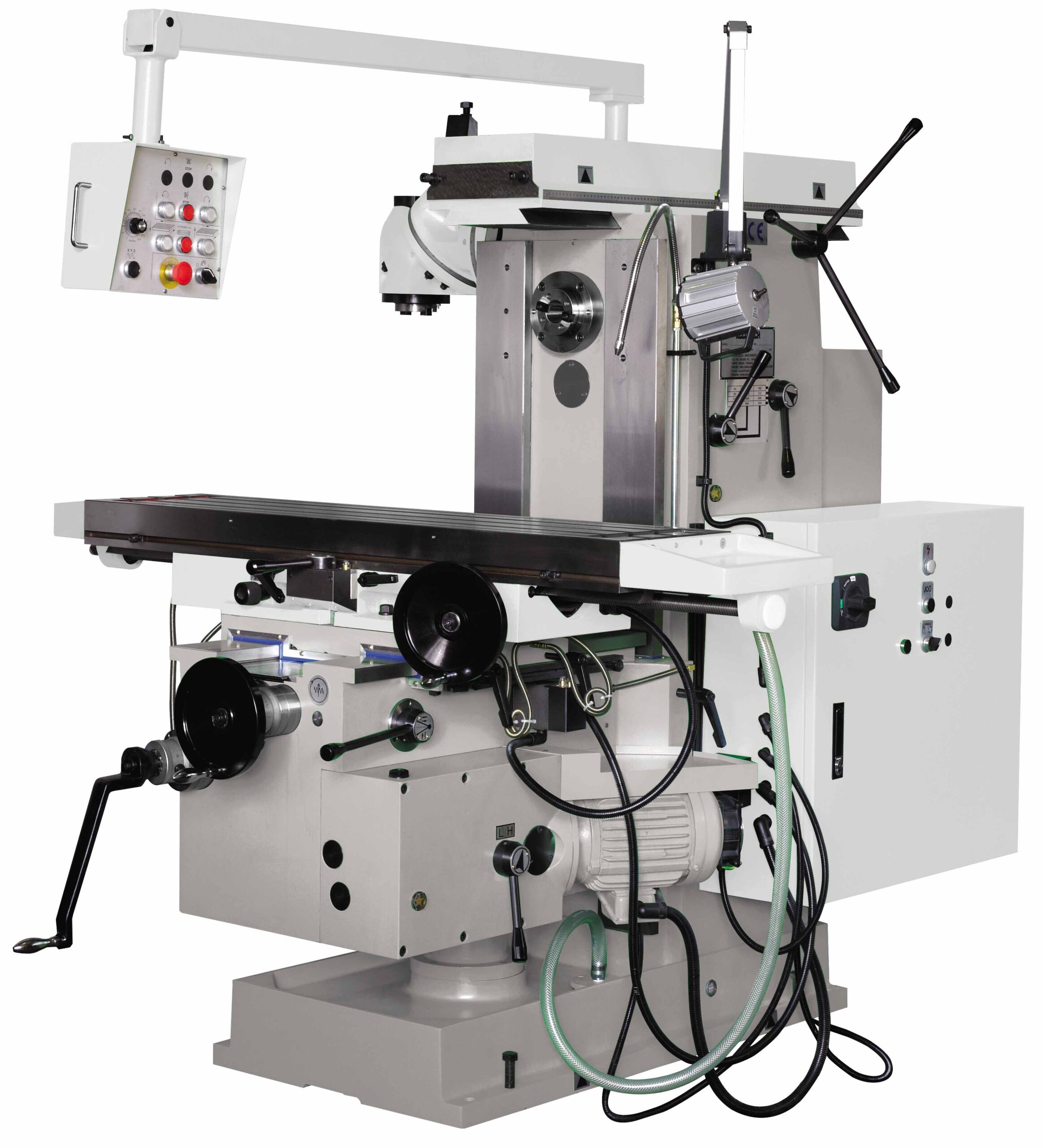

Euro-Mill Maximart 5U
Klik op de foto van de machine voor meer informatie.
|
ITEM/MODEL |
5U |
|
Table |
|
|
Table size |
1300 × 300 mm |
|
T-slots (size×number×distance) |
16 × 3 × 70 mm |
|
Table swivel (R&L) |
45° |
|
Table load capacity |
500 kgs |
|
Travel |
|
|
Automatic longitudinal |
950 mm |
|
Automatic cross |
380 mm |
|
Automatic vertical |
450 mm |
|
Distance from spindle to overarm |
155 mm |
|
Quill travel |
– |
|
Spindle |
|
|
Spindle taper |
ISO-40 |
|
Diameter of the spindle nose |
88.88 mm |
|
Milling arbor oliameter (*) |
27 mm |
|
Number of spindle speeds (R.P.M.) |
12 (50-1700) 50HZ (40-2100) 60HZ |
|
Feeds |
|
|
Longitudinal and cross feeds |
10-1208 mm |
|
Vertical feed |
5-604 mm |
|
Rapid Traverse |
|
|
Longitudinal and cross |
1208 mm/min |
|
Vertical |
5-604 mm/min |
|
Motors |
|
|
Main motor HP |
5 |
|
Feed motor HP |
2.5 |
|
Coolant |
|
|
Coolant-pump HP |
1/8 |
|
Motorized Overarm |
|
|
Housing of the taper spindle |
– |
|
Number of speeds |
– |
|
Speed range (R.P.M.) |
– |
|
Motor HP |
– |
|
Machine Weight |
|
|
Net Weight |
2500 kgs |
|
Gross Weight |
2700 kgs |
|
Machine Dimensions |
– |
|
Packing measurement (L×W×H) |
1700 × 2200 × 2200 mm |
|
● Above specifications are subject to change without prior notice. |
|
